Product Name:

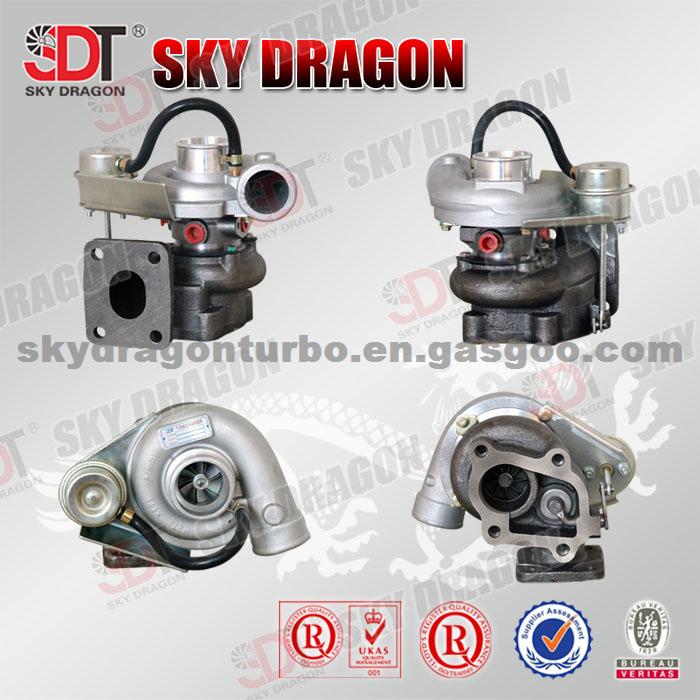

CHRA Core Cartidge TurboCharger GT2052S, GT2052LS 703389-5002S 703389-0001, 703389-0002, 703389-1, 703389-2 2823041431, 28230-41450, 28230-414
Product Attribute:
Engine Model:D4AL
Turbo Model:GT2052S
Size:300*280*320mm
G.W:6kg
Turbine Material:K18
Displacement:3.3L, 2900 ccm, 5 Cylindersl
ETS Component:Turbin
ETS Type:Runoff
Payment Method:T/T Western Union Cash
Packaging:SDT Packaging or Neutral Packaging
Warranty:6 months
Application:
Hyundai Mighty Truck, Bus HD72
Product Description:
Product Description
1) Model: GT2052S, GT2052LS
2) Part No. :703389-5002S 703389-0001, 703389-0002, 703389-1, 703389-2 2823041450, 2823041431, 28230-41450, 28230-41431
3) Engine Model: D4AL
4) Application : Hyundai Mighty Truck, Bus HD72 D4AL
5) Payment terms: T/T,Western union ,Cash
|
Part Number |
703389-5002S |
|
Previous Version |
703389-0001, 703389-0002, 703389-1, 703389-2 |
|
OE Number |
2823041450, 2823041431, 28230-41450, 28230-41431 |
|
Year |
2000- |
|
Description |
Hyundai Mighty Truck, Bus HD72 |
|
Turbo Model |
GT2052S, GT2052LS |
|
CHRA |
433352-0022 (433352-5022S, 1102020923) |
|
Engine |
D4AL |
|
Engine Manufacturer |
Hyundai |
|
Displacement |
3.3L, 2900 ccm, 5 Cylinders |
|
KW |
115 |
|
Fuel |
Diesel |
|
Angle a (compressor housing) |
280 |
|
Angle (turbine housing) |
90 |
|
Bearing housing |
434578-0012/434578-0014 |
|
Turbine Wheel |
434715-0003/434715-0001 (Ind. 47.1 mm, Exd. 38.4 mm, 9 Blades) (1102120438) |
|
Comp. Wheel |
451584-0007 (436322-0006)(Ind. 38.3 mm, Exd. 52. mm, Trm 54, 6+6 Blades, Extended back disc type) (1102015419) |
|
Back plate |
721085-0001/434689-0002 (1102015316/1102015314) |
|
Heat shield Number |
434302-0001/434684-0001 (1102015343) |
|
Repair Kit |
732252-0001 (1102015756) |
|
Turbine Housing |
435788-0055 |
|
Compressor Cover |
435791-0082/704099-0001 |
|
Actuator |
451792-0005 |
|
Settings Waste gate (pressure) |
0.850-0.890/1.170-1.210 |
|
Settings Waste gate (lifting rod) |
1.00/4.00 mm |
|
Gasket (turbine inlet) |
210603 (Inox Steel) |
|
Gasket (turbine outlet) |
210604 (Inox Steel) |
|
Gasket (oil outlet) |
210243 (Paper) |
